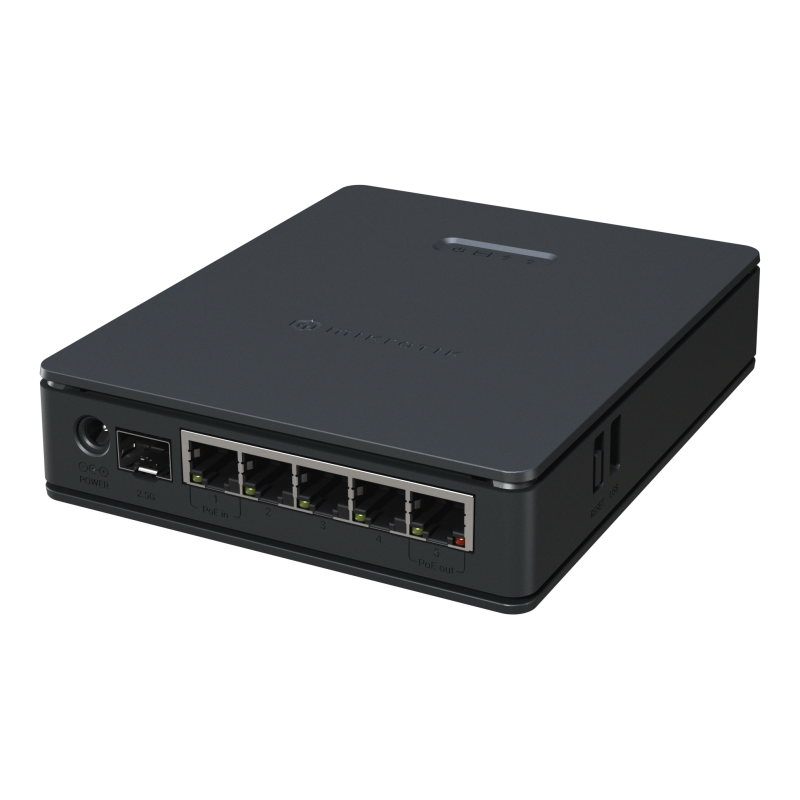

E62iUGS-2axD5axT

Our most cost-effective Wi-Fi 6 access point yet. Triple-chain 5 GHz radio (up to 900 Mbit/s throughput), dual-band Wi-Fi 6, 5x Gigabit Ethernet ports, and a 2.5G SFP. Powered by a dual-core ARM CPU, with PoE-in/PoE-out flexibility, a standard DC jack, USB, and a sturdy high-end enclosure that can be mounted on the wall.
Product code
E62iUGS-2axD5axT
Suggested price
$79.00
Architecture
ARM 32bit
CPU
EN7562CT
CPU core count
2
CPU nominal frequency
950 MHz
CPU Threads count
2
Switch chip model
EN7523
RouterOS license
4
Operating System
RouterOS v7
Size of RAM
512 MB
Storage size
128 MB
Storage type
NAND
MTBF
Approximately 100'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate
574 Mbit/s
Wireless 2.4 GHz Number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz
5.5
Wireless 2.4 GHz chip model
MT7916
Wireless 2.4 GHz generation
Wi-Fi 6
Wireless 5 GHz Max data rate
1800 Mbit/s
Wireless 5 GHz Number of chains
3
Wireless 5 GHz standards
802.11a/n/ac/ax
Antenna gain dBi for 5 GHz
8.07
Wireless 5 GHz chip model
MT7976
Wireless 5 GHz generation
Wi-Fi 6
WiFi speed
AX2400
Ethernet
10/100/1000 Ethernet ports
5
Number of 1G Ethernet ports with PoE-out
1
Fiber
SFP ports
1 (2.5G supported)
Peripherals
Number of USB ports
1
USB Power Reset
Yes
USB slot type
USB type A
Max USB current (A)
1
Powering
Number of DC inputs
2 (DC jack, PoE-IN)
DC jack input Voltage
12-28 V
Max power consumption
34 W
Max power consumption without attachments
11 W
PoE in
Passive PoE
Cooling type
Passive
PoE in input Voltage
18-28 V
PoE-out
PoE-out ports
Ether5
PoE out
Passive PoE
Low voltage PoE-Out current limit
0.6 A
Max total out (A)
0.6 A
Total output current
0.6
Total output power
16.8
