Wifx L1 4G - LoRaWAN® base station
For Switzerland, our gateways and LoRa products are now sold by bastelgarage.ch
For other countries, please consult our resellers page on iot.wifx.net
Professional outdoor LoRaWAN® IoT gateway in ultra-compact format, designed and assembled in Switzerland by Wifx
- Ethernet and 4G LTE backhaul
- Compact, robust, IP65 – Outdoor and indoor use
- Easy to install and use (PoE), from a simple web interface
- Secure and reliable
- Customizable
All these characteristics make the Wifx L1 4G a perfect LoRaWAN® base station for outdoor conditions but also indoor when robust and/or discreet setup is required.
Links
More information below
Compact and robust professional grade LoRaWAN® base station
- Ethernet and 4G LTE backhaul
- Compact, robust, IP65 – Outdoor and indoor use
- Easy to install and use (PoE), from a simple web interface
- Secure and reliable
- Customizable
All these characteristics make the Wifx L1 4G a perfect LoRaWAN® base station for outdoor conditions but also indoor when robust and/or discreet setup is required.
LORIX OS - OS specifically made for the Wifx IoT gateways
The Wifx L1 4G is now shipped by default with the LORIX OS, a operating system including but not limited to the following features:
Intuitive
- Secure, reliable and transparent remote update system
- Responsive web interface for smartphone, tablet and computer
- Free choice and configuration of LoRaWAN® server
- Advanced LoRaWAN® forwarder management and monitoring
Integratable
- Easy and secure integration, automation through a REST API using the OpenAPI specification
- Full access to system configuration and tools through SSH
- Standard and proven embedded tools
- Comprehensive ARM® toolchain for compiling additional applications
Customizable
- Fully open and customisable image creation system to create your own system image
- Ability to integrate your own applications and tools into the image to create a gateway for your specific needs
- Intelligent Yocto project-based construction that allows you to sustain your business over the long term without losing time
Characteristics
Main system
- CPU — ARM® Cortex-A5 600MHz
- RAM — 256MB
- Internal storage — 1 GB / 1024 MB (internal storage)
- Extension storage — microSD card
- Operable from -30 to +70 °C
- IP65 protection level
Connectivity
- Ethernet 10/100Mbps with passive PoE (active conditionally possible)
- 4G LTE Cat 1bis (up to 10 Mbit/s) with nano SIM
- USB-C connector providing a serial interface (configuration, system image programming) and powering
- microSD connector to expand internal memory capacity
- Permits to bring power and data with only one cable
LNS Compatibility
- ChirpStack
- AWS IoT Core for LoRaWAN
- Actility Thingpark
- LORIOT
- The Things Network
- Also compatible with any Semtech standard UDP packet forwarder and BasicStation compatible clouds
LoRa©/RF system
- Based on Semtech®'s LoRa concentrator chip SX1302 with SF5-SF6 support
- RX sensitivity: -139 dBm (SF12BW125)
- TX power: 27 dBm
Regional parameters
- 8XX-EU version for 863-870 MHz band
- EU868
- IN865
- RU864
Certification
- CE (Europe)
General
- Gateway size 198 x 45mm
- Packing size 530 x 63 x 160mm (l x h x d)

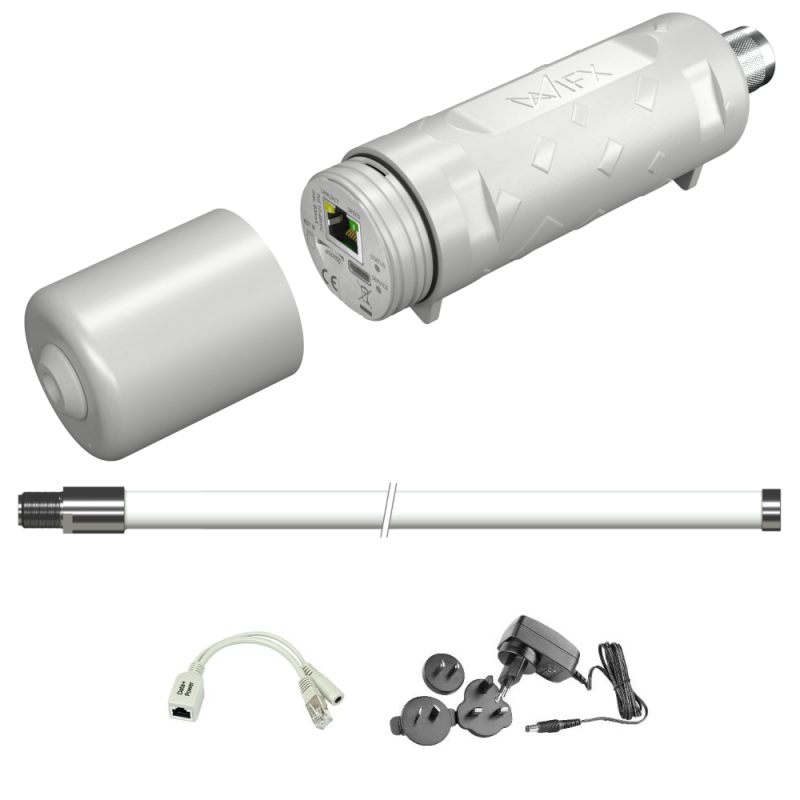

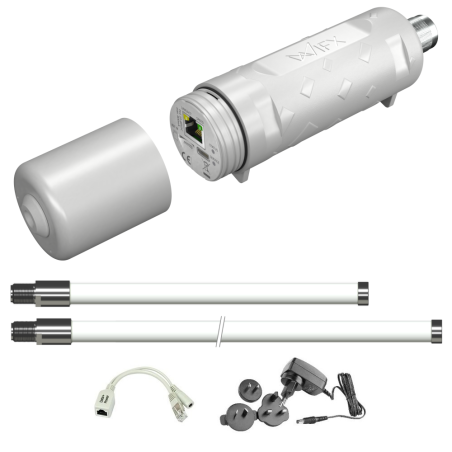

Package contents
- Wifx L1 4G — LoRaWAN® Base station
- UV protected zip tie (x2)
- Passive PoE injector
- 24VDC/12W switching adapter HNP 12-240L6
- LoRa® band antenna
- Quick start guide
Links
Check full product specification on our online documentation platform at https://iot.wifx.net/doc
BSK-WL1-4G-8XX-EU-OUT5
Références spécifiques
- ean13
- 7649995155123
